3/8 scale. Following ian beattie's drawing's in Railway Modeller magazine July 1990.
July 2024; I've updated the cab control panel by adding details and changed the underside of the rood to suit.

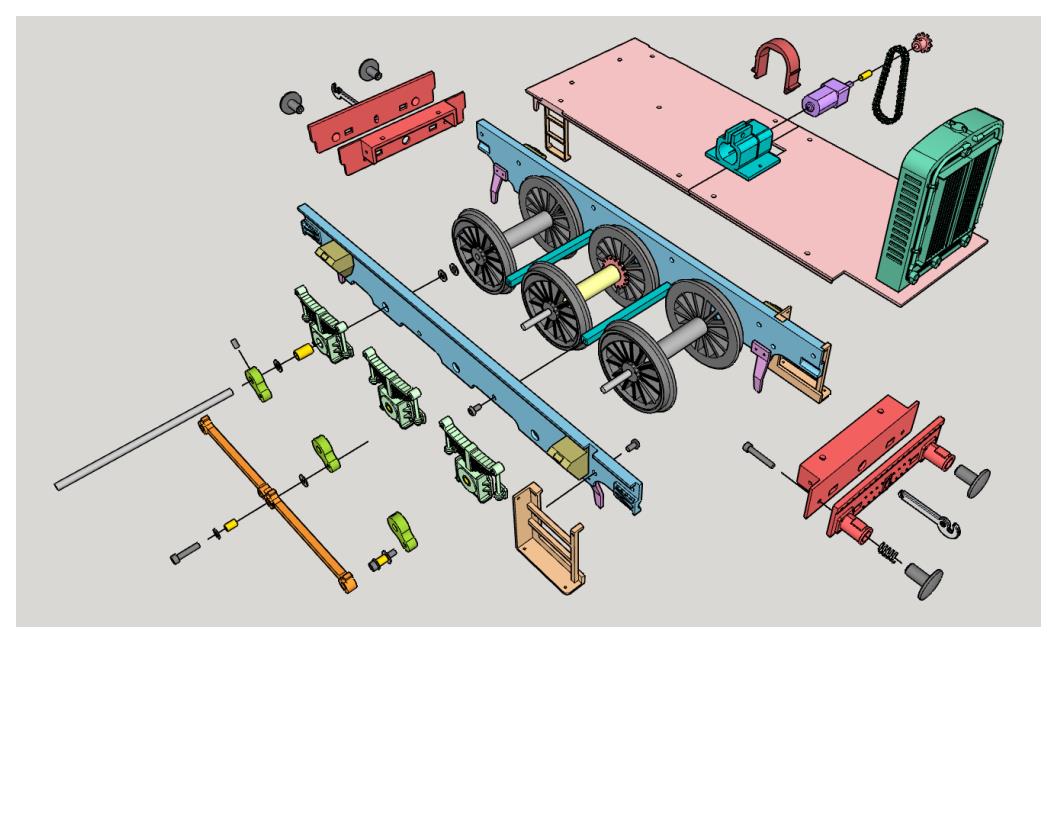

exploded view of chassis.
Chain guard updated
Rear steps orientation corrected
Chain guard updated
Rear steps orientation corrected

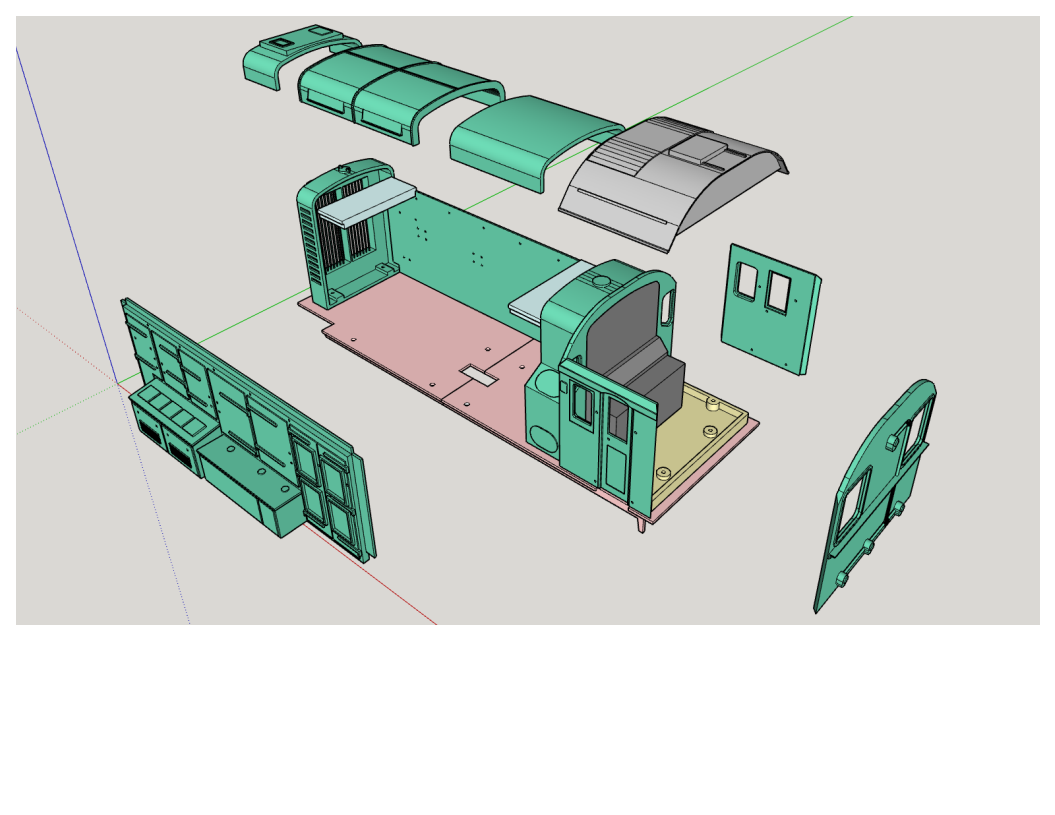

Exploded view of body
Documents
Document
General description. I've added set screws to the list of screws and an addendum with a note of reprinting the cranks in ABS in stead of PLA..
Models
3D Model
a small fixture to hold crank for drilling and tapping.
3D Model
These locate to the frame by the bearing, rotate to square with the frame and glue in place.
3D Model
align and glue to 08.3b
3D Model
Glue to 08.4a. Tap the 2 side holes 2-56
3D Model
Align and glue to 08.4b.
3D Model
glue to 08.4a. Tap the 2 side holes 2-56
3D Model
Buffer Head. May need to be fitted. Tap 2-56. I re-purposed springs from ball point pens.
3D Model
Tap the 2 end holes 2-56
3D Model
Looks better with .2 mm nozzle
3D Model
Both sides alike. Tap the hole 2-56
3D Model
Also print a mirror image for the left side. Tap the hole 2-56
3D Model
Also print a mirror image for the left side. The longest part 239 mm. Should print rotated diagonally on a 220 x 220 table.
Updated 19 Jan 21. Holes for guard irons added.
Updated 19 Jan 21. Holes for guard irons added.
3D Model
also Print a mirror image for the left side. Tap the 1 large hole hole 2-56. the 4 little holes are for hand rails.
3D Model
you'll most likely have to ream the center hole to size for the axle shaft(1/8"). The little hole on the back side is for a small bit of filament to engage with the one in the printed axle. This quarters the left and right wheel weights.
3D Model
You may have to drill out the hole for the axle shaft and the quartering holes for the filament. Tap the small hole 2-56 for set screw.
3D Model
This is a shortened axle to accommodate the 16T sprocket. Tap the little hole 2-56 for ta set screw
3D Model
A small spacer to finish the to 40mm. little co'bore side to face the sprocket.
3D Model
You may have to size the holes. Tap the crank pin hole 2-56 and the set screw 2-56.
I think this part is best printed in ABS.
I think this part is best printed in ABS.
3D Model
also print a mirror image for the left side. If you printed the frames on a diagonal, do these too.
3D Model
Tap the 2 side holes 2-56
3D Model
Tap the 2 side holes 2-56
3D Model
Both sides are alike
3D Model
Tap 3 holes 2-26
3D Model
Tap the 2 holes 2-56
3D Model
Tap 4 holes 2-56
3D Model
Tap 1 hole 2-56
3D Model
Also print the mirror image for the left side.
3D Model
3D Model
3D Model
I've changed the roof .5mm thickness to 1mm.
3D Model
Tap 3 holes 3-56. Also print the mirror image for the left side
3D Model
Updated version of 08.29 Top Front rx
3D Model
Optional top for the engine compartment. It combines 3 top pieces into one.
3D Model
Updated version of 08.30 Top Center rx
3D Model
Updated version of 08.31 Top Rear rx
3D Model
Print 2. These will hold the tops of the sides if one were to pick up the engine with one hand.
3D Model
I've added material to strengthen the arch
3D Model
Drill jigs for guard irons. if you've already printed the older frames, you can spot and drill the holes in the frames with these. Spot holes with a 1mm drill, drill through, then open to size. If assembled you'll have to temporally remove the steps.
3D Model
Guard iron for left front and right rear. Print mirror image for other two.
Tap the holes 0-80 or 10 BA.
Tap the holes 0-80 or 10 BA.
3D Model
Updated Now with details
3D Model
updated to accommodate detailed control panel
Folders
Folder
Title
08 Printed Gear Drive .STLs
Notes
Printed gears and parts for 2 diferent Uxcel Motors.
1, Uxcel motor with open gearbox same as used with chain drive.
2, Uxcel motor with Dust Proof gearbox( round).
Also Milling or filing fixture to machine flats set screw.
Folders
Folder
Title
Gear drive common to both motors .stl
Images

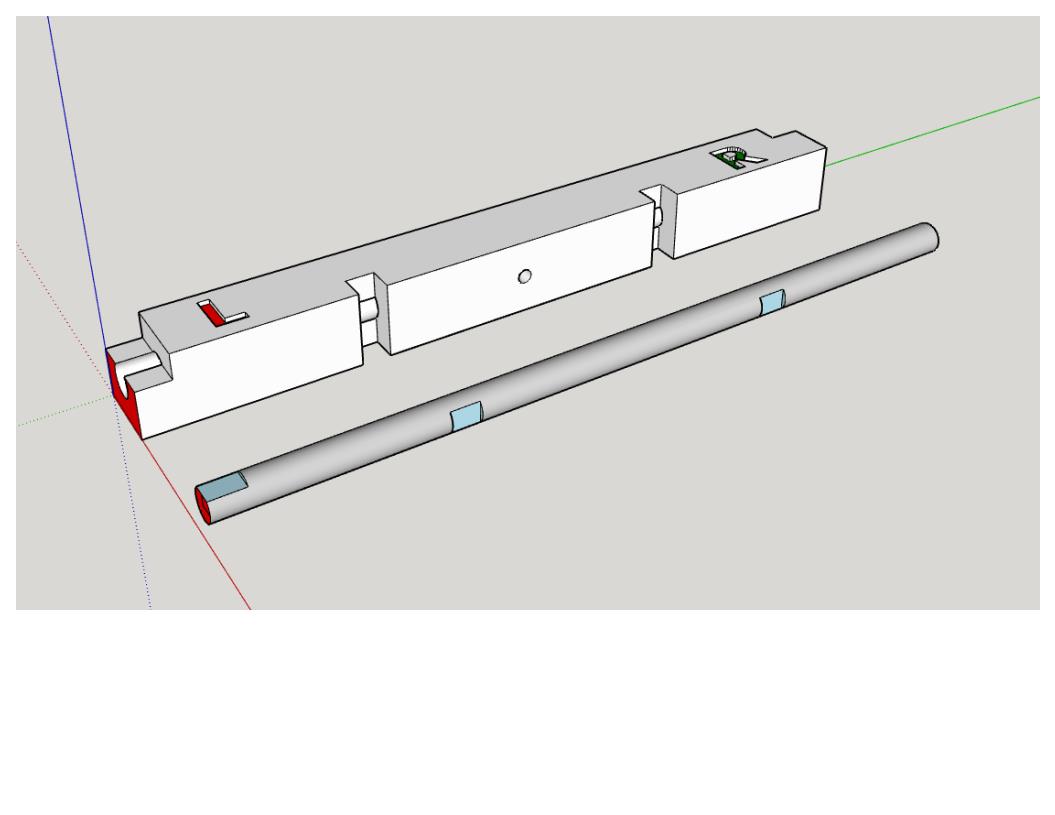

Axle shown with fixture to mill flats.
Models
3D Model
Fixture to mill or file flats for set screws. Crank, two outer most. Spacer and 20t gear for the inward two.
3D Model
3D Model
3D Model
Design by Tref Waldor
3D Model
Design by Tref Waldor
3D Model
Folder
Title
Uxcel motor .stl
Images

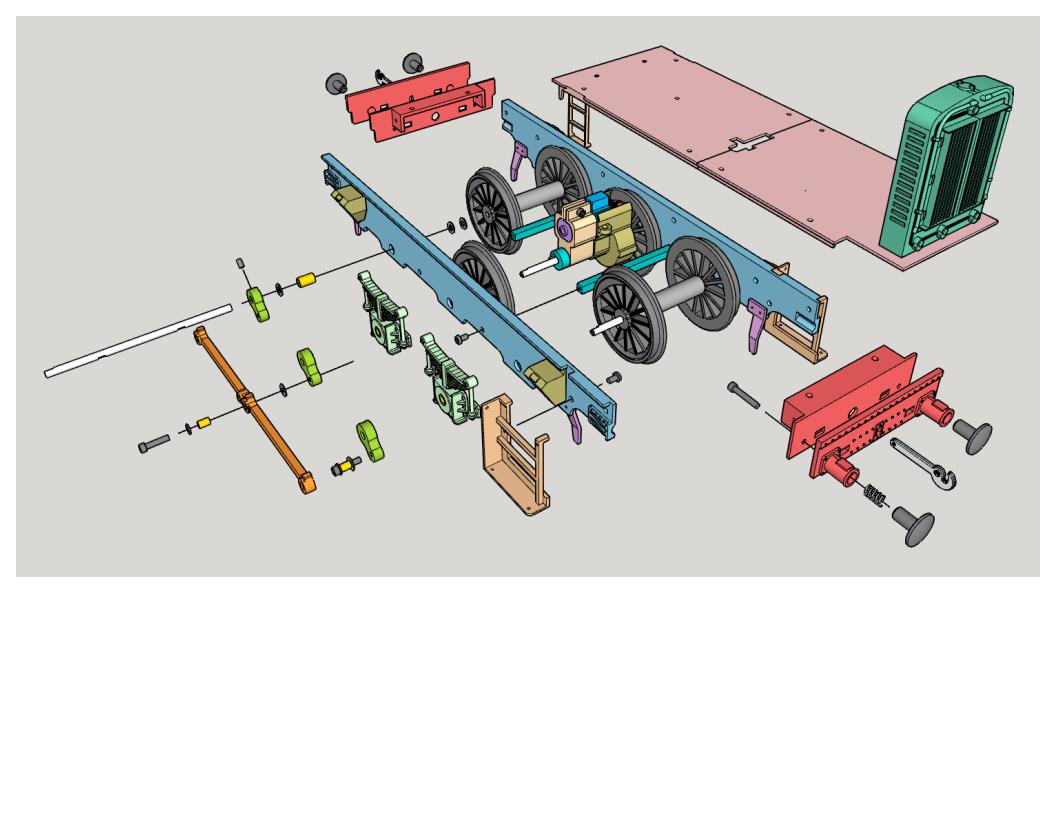

Exploded view of Chassis with Uxcel motor drive.
Exploded view of Uxcel motor drive.
Models
3D Model
3D Model
3D Model
Folder
Title
Uxcel motor-Dust Proof motor .stl
Images

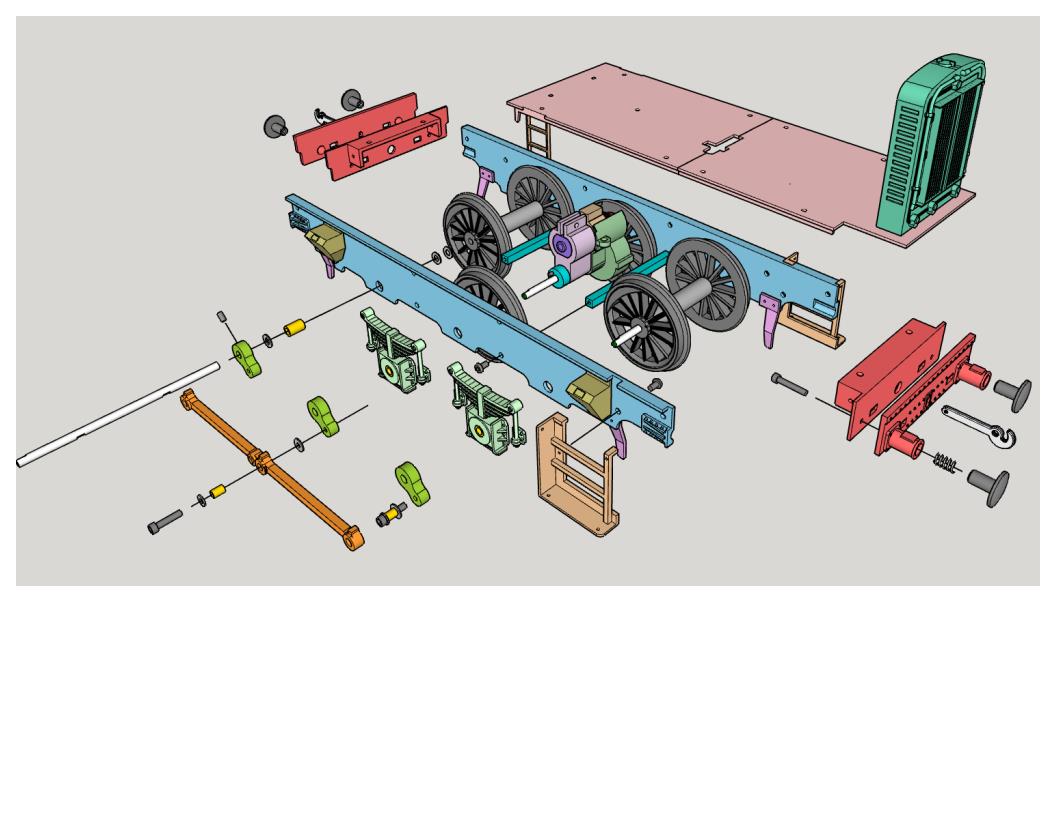

Exploded view of chassis with Uxcel dust proof drive.

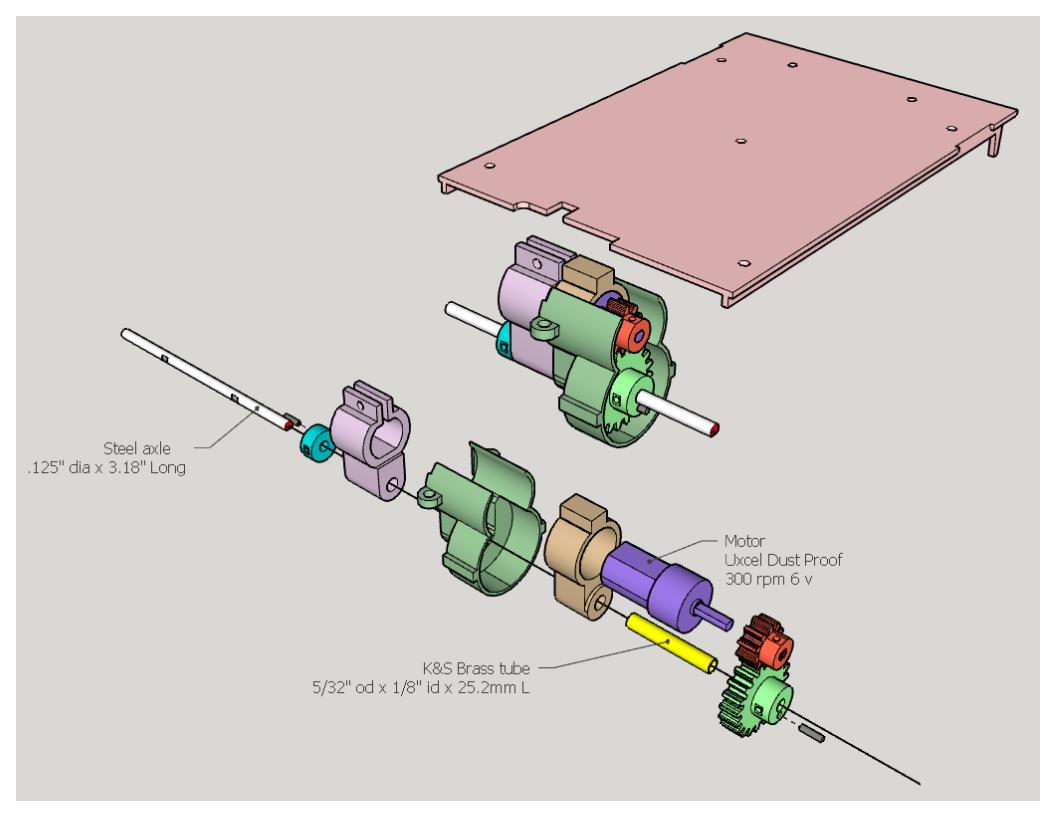

Exploded view of Uxcel motor(Dust proof) drive
Models
