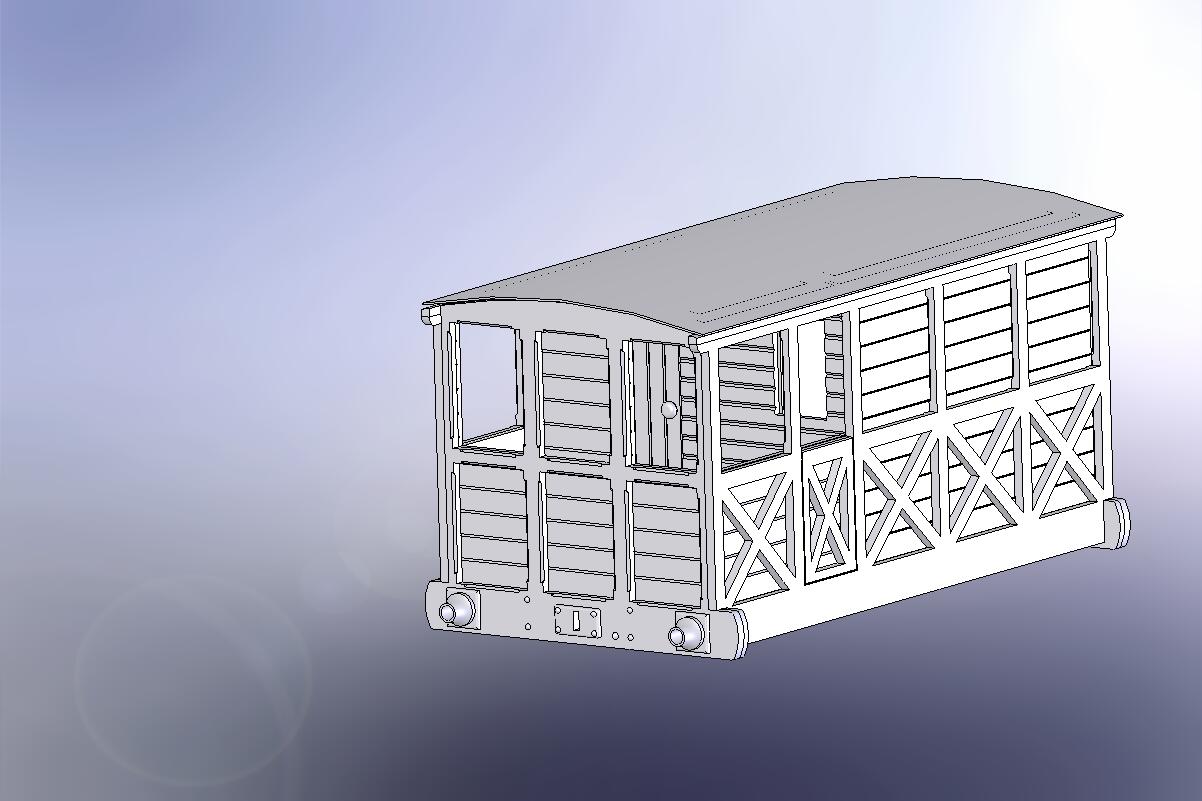

An early L&Y brakevan, circa 1860.....
Models
3D Model
.stl for the old L&Y brake van. This is the cabin end.
3D Model
This is the verandah end.
3D Model
3D Model
3D Model
3D Model
Make two of the sides, one a mirror image of the other.
3D Model
In response to Keith's invitation to add a modified roof, here it is. This roof replaces the hollow rectangular under frames with a solid block extending 1mm lower. This may be easier to print for those having problems with the original thin roof. Note: if using this roof reduce the height of the "inner wall" by 5mm with a straight horizontal at the top.
Folders
Folder
Title
Additional stls
Notes

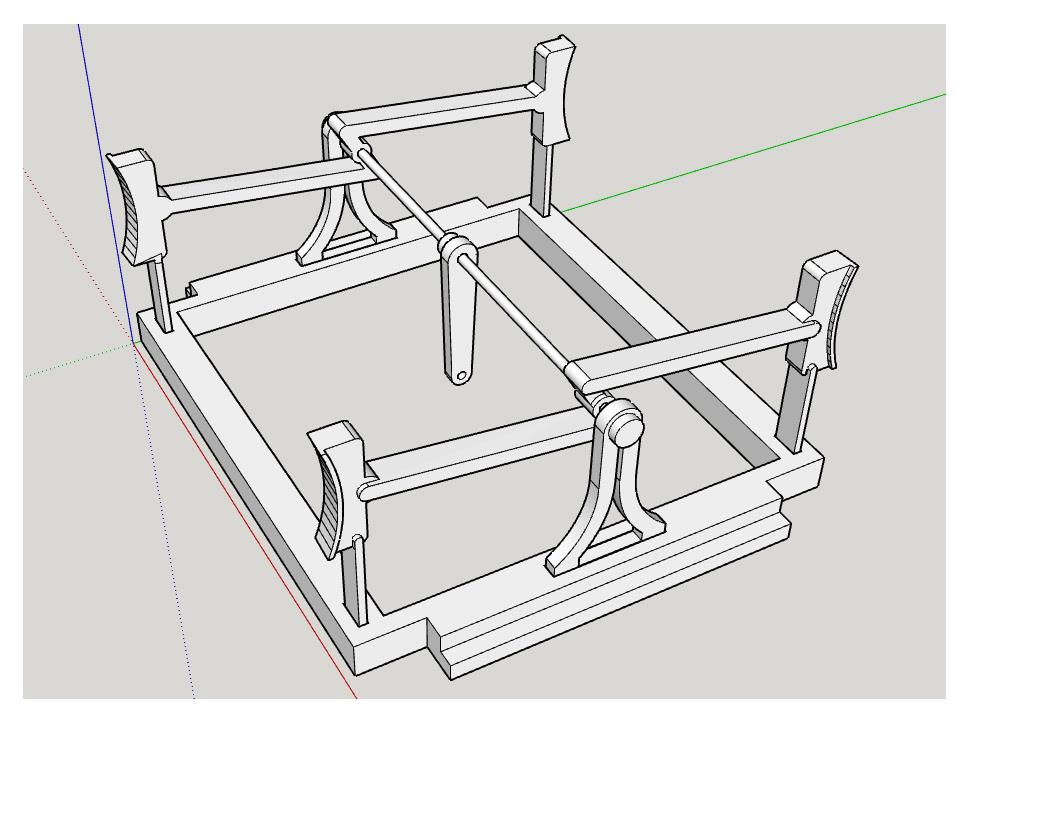

With Keith's kind consent I'm adding these stl files that I did to complete the Lanky Brake Van.
Images
Models
3D Model
3D Model
3D Model
Print mirror image for left.
Uses 3mm id x 4mm od x 5mm long Brass tube for bearing.
Uses 3mm id x 4mm od x 5mm long Brass tube for bearing.
