LMS 20T Brake Van D1890

Zip archve

The following link will allow you to download the complete model and text in a single .zip archive file.

Download complete archive
Alternatively you can access all the files and information below.

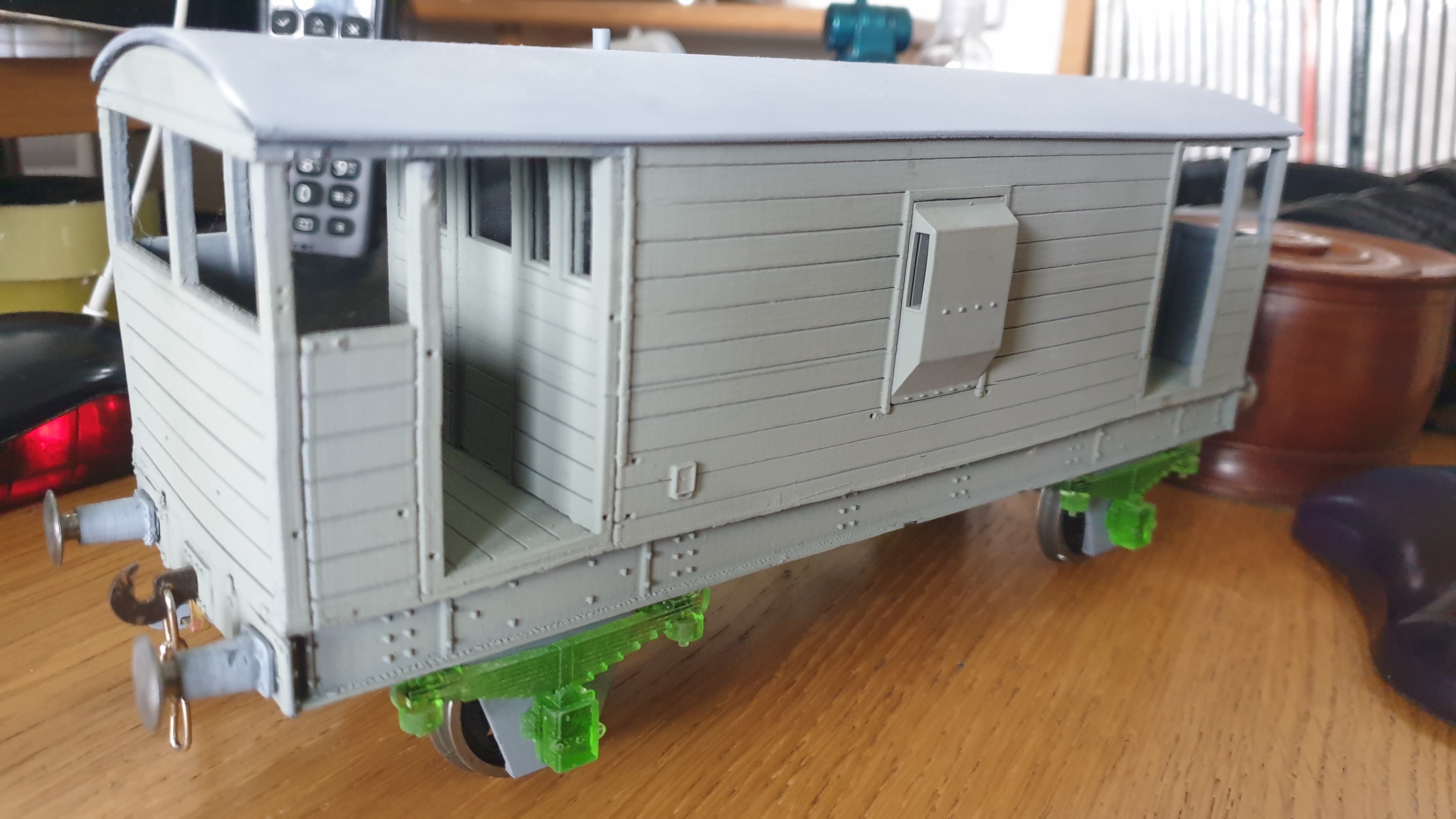

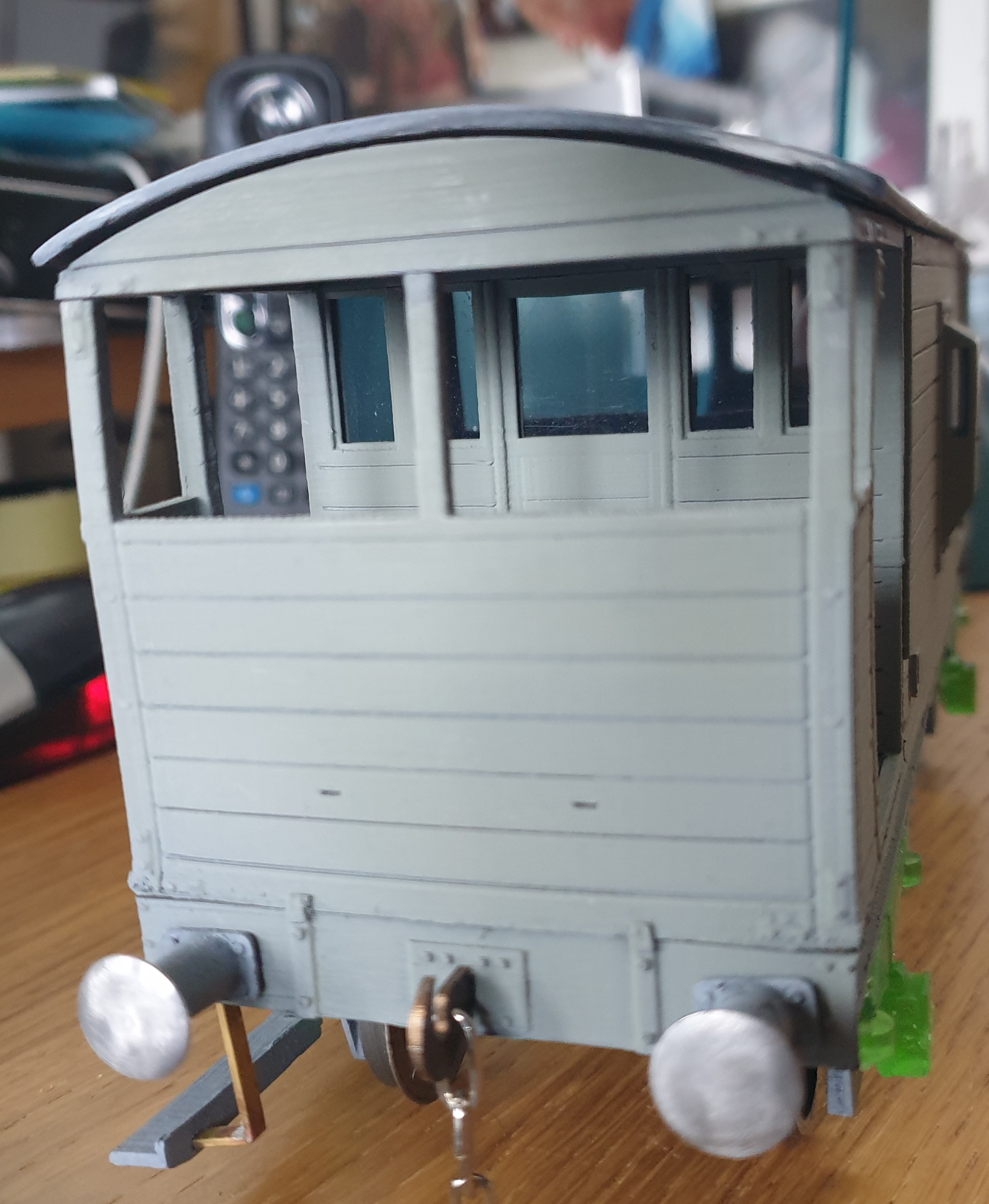

Stanier's first long wheelbase guards van, built from 1933. Very much an alpha release as I have not managed to put together a completely satisfactory model myself. Please feed back any issues found.

Details

Model prototype

Wagon

Region/Company

LMS

Diagram

D1890

Era start year

1933

Model Status

Alpha

License

Creative Common Attribution-NonCommercial-ShareAlike CC BY-NC-SA

Documents

Document

Notes on LMS D1890 Brake Van_0.docx

Models

3D Model

D1890 Axlebox._0.stl

3D Model

D1890 Buffer Stock standard shank.stl

3D Model

D1890 Buffer Stock wide shank.stl

3D Model

D1890 Ducket_1.stl

3D Model

D1890 Floor_0.stl

3D Model

D1890 internal brace_0.stl

3D Model

D1890 Cabin and ends roof.stl

3D Model

D1890 Guards cabin and veranda bodies_1.stl

3D Model

D1890 top step board_0.stl

3D Model

D1890 Underframe_0.stl

3D Model

D1890 Veranda roof frame_0.stl

3D Model

D1890 W iron fixed_0.stl

3D Model

D1890 W iron rocking_0.stl

3D Model

Lower running board_0.stl

3D Model

Veranda roof fixing strips.stl

3D Model

In case the veranda sides and end do not print successfully. Use with veranda side models

3D Model

In case it is not possible to get the veranda ends to print successfully with the full cabin/veranda body model. Mirror for RH

3D Model

Mirror for RH side
