SECR / SR 12 Ton 2 Plank Ballast Wagon (SR dia 1744)

Zip archve

The following link will allow you to download the complete model and text in a single .zip archive file.

Download complete archive
Alternatively you can access all the files and information below.

Details

Model prototype

Wagon

Diagram

SR 1744

Era start year

1911

Era end year

1971

Model Status

Beta

License

Creative Common Attribution-NonCommercial-ShareAlike CC BY-NC-SA

Models

3D Model

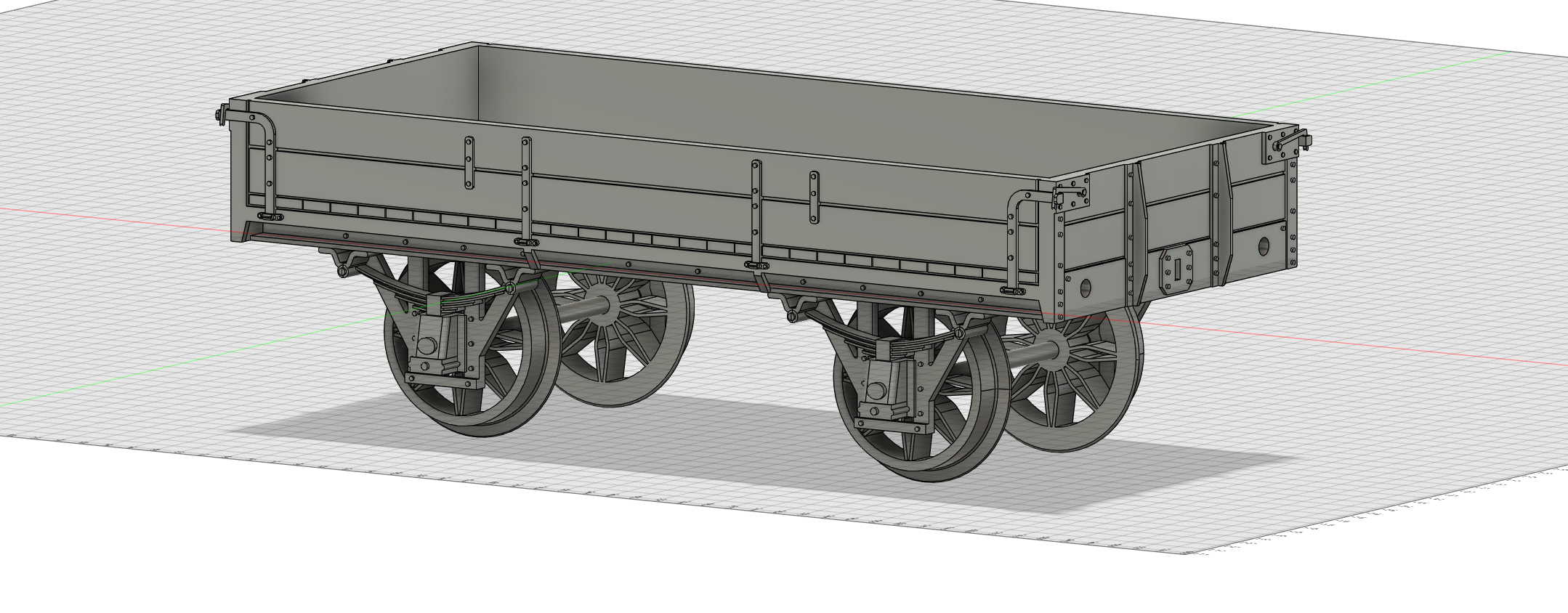

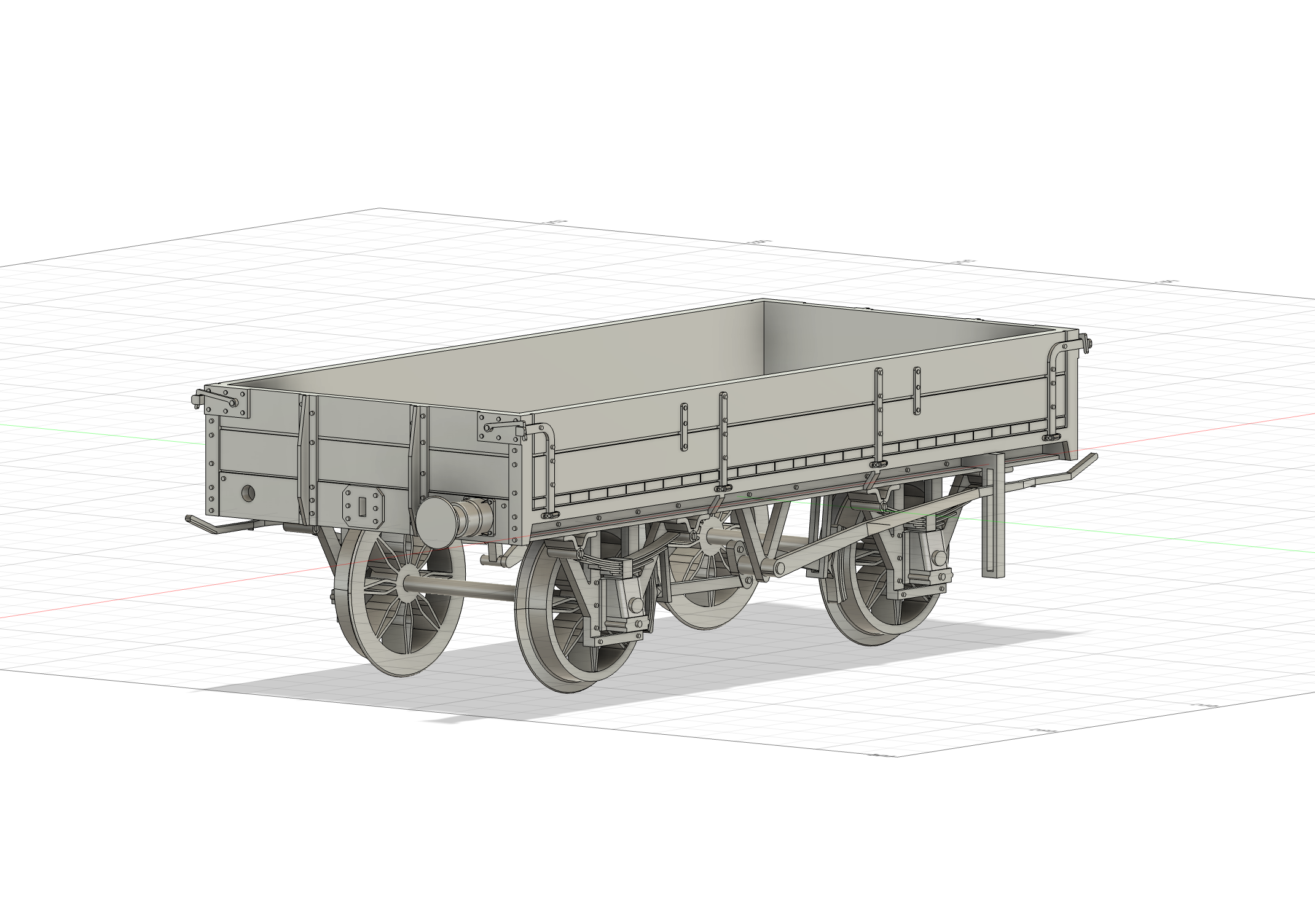

Main wagon body to be printed as one piece upright.

For PLA best printed at 0.12 layer height with support in cura as 'touching baseplate one'

3D Model

left hand W iron as you look from the side. short end pushes hard up against the underneath cross member

3D Model

right hand W iron as you look from the side. short end pushes hard up against the underneath cross member

3D Model

left hand W iron for the opposite side as you look from the side. short end pushes hard up against the underneath cross member

3D Model

W_IRON_2R.stl

right hand hand W iron as you look from the side. short end pushes hard up against the underneath cross member

3D Model

Use this on your own axles or Slaters "S9116 3'1" 8 Open Spoke (Wagon) Standard Profile".

If using Slaters wheels, clear the axle holes in the axleboxes with a 4.8mm drill (should be possible with the drill bit held in fingers.) Push the Slaters bearing in almost all the way but with 1mm protruding.
